Soundproof Curtains

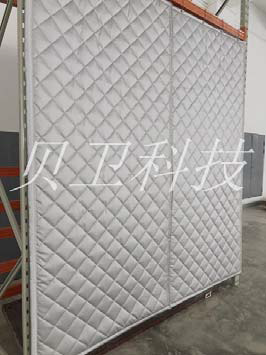

BQW NC01 Soundproof curtain is modular and flexible. It offers the benefits of both noise barriers and sound absorption. NC01 is a model in the BQW’s acoustic curtain series, mainly used in the field of noise control.
Features:
-
Noise barrier and sound absorber composite curtains, high noise insulation and absorption.
-
It can be used inside and outside the room, easily hung and assembled.
-
Easy to move, fast to build and dismantle, and can be used repeatedly.
-
Environmentally friendly, flame retardant, water and chemical resistant, UV resistant, and mold resistant.
-
Can accommodate special-shaped sound insulation enclosure structures.
Product Data：
Model: NC01
Consistence and Materials: The NC01 curtain consists of a 4Kg/m2 loaded vinyl barrier sandwiched between two layers of acrylic coated-fiberglass-cloth faced quilted fiberglass absorbers. Silicone coated fiberglass cloth available.
Size: 1200mm wide and 2500/3000/3500/4000mm Length. Tailored sizes also available, recommended width≤1200mm, length≤4500mm.
Available colors: Gray, white, black, or tan.
Apparent thickness: About 30 mm.
Weight: About 6 Kg/m2.
Flammability: Chinese GB8624-2012 Class B1.
Accessories: Hook and loop fasteners, grommet hangers, curtain support hardware.
Acoustical Performance:
Octave Band（Hz）
|
125
|
250
|
500
|
1000
|
2000
|
4000
|
Results
|
|
Air Sound Insulation R（dB）
|
19.9
|
21.1
|
23.2
|
37.4
|
49.2
|
52.7
|
Rw：30
|
Absorption Data of One Side AbsorberαS
|
0.12
|
0.32
|
0.56
|
0.80
|
0.46
|
0.21
|
NRC：0.55
|
Remarks:
The air sound insulation is tested according to Chinese GB/T19889.3-2005 and evaluated according to GB/T50121-2005.
The sound absorption coefficient in reverberation room is tested according to Chinese GB/T20247-2006 and evaluated
according to GB/T16731 – 1997.
|
Application:

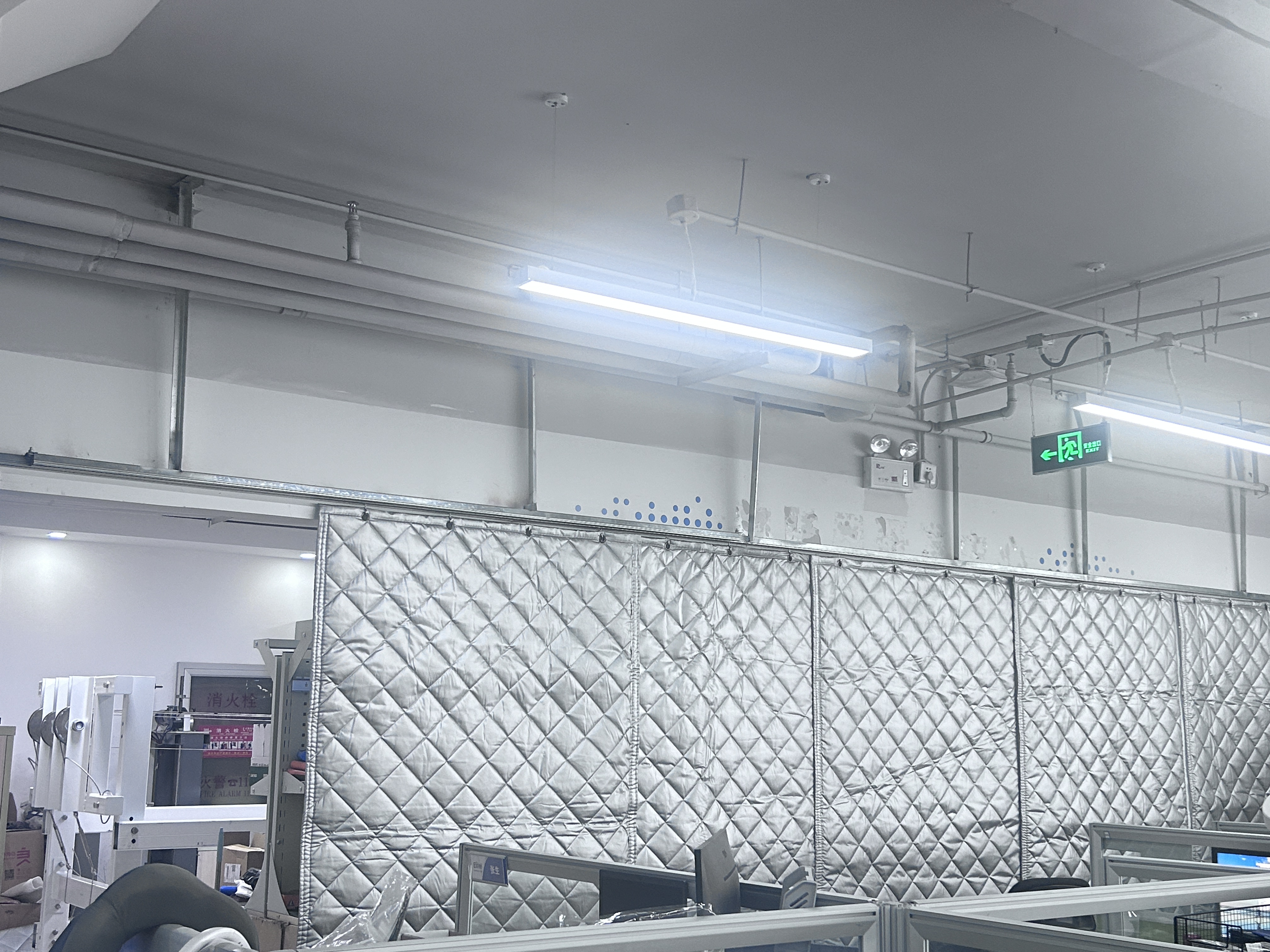

Portable or fixed acoustic screens, cost effective room dividers, separator walls, noise control enclosure, perimeter walls of a building.
NOISE CONTROL APPLICATIONS:

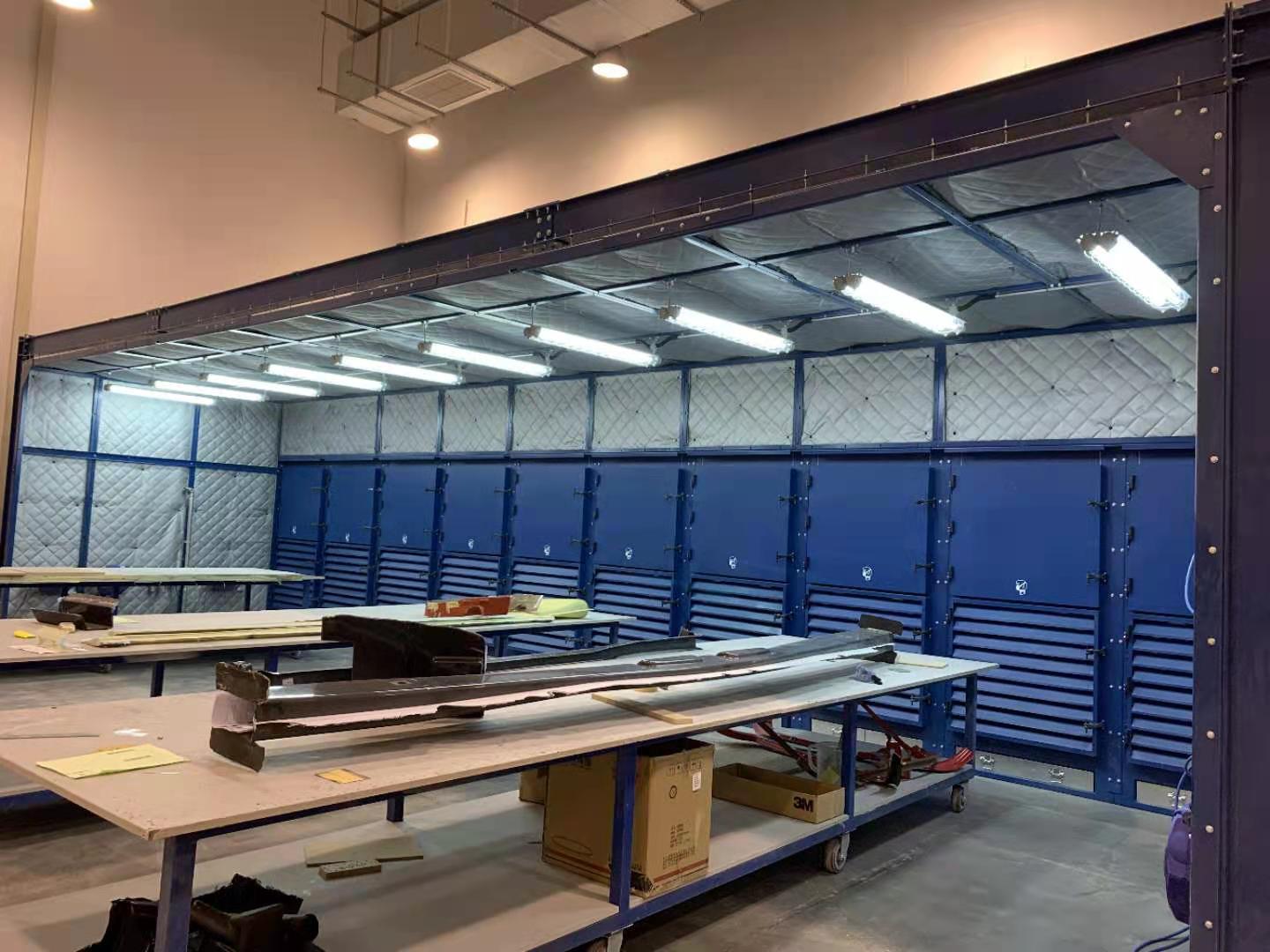

BQW’s soundproof curtains offer significant noise reduction with high STC and NRC acoustical ratings. They can be supplied as a partial or complete enclosure around noisy industrial equipment including: COMPRESSORS, PUMPS, GENERATORS, BLOWERS, FANS, GRANULATORS, PRESSES. Also suitable for larger complete enclosures including: MANUFACTURING EQUIPMENT, TEST CHAMBERS, MACHINERY ENCLOSURES.
Portable Acoustic Screens can be used individually or in groups to form partial noise enclosures, offering complete mobility and maximum accessibility.
Assemble noise barrier to control construction noise of excavators, crushers, excavators, etc.
